TIP Gauge
Custom gauge brackets, mounts, switch panels & trim plates fabricated from 6061
aluminum billet and diamond plate or 304 SS sheet and billet for durable good looks!
Stainless Steel industrial pressure gauges available in many sizes & configurations.
Fits standard 2-1/16" gauges - ships with locking SS installation hardware.
Don't see what you want?  We welcome your custom needs!
Now Available!


Dyno Gauges

Cowl Mounts

Water/Meth Gauges
 Stainless Steel Gauges
1.5" Rear 1/8T   2" Rear 1/4T   2" Stem 1/4T   4" Stem 1/4T

0 - 15     PSI      $ 30.00            $ 40.00            $ 45.00             $ 75.00
0 - 30     PSI                "                       "                       "                        "
0 - 60     PSI                "                       "                       "                        "
0 - 100   PSI                "                       "                       "                        "
0 - 300   PSI                "                       "                       "                        "
0 - 3000 PSI                "                       "                    xxx             $ 90.00
Other stainless steel gauges available upon request - please inquire.
FREE  SHIPPING
Counter
Custom Consoles

Shift Towers

Tranny Tunnels

Enclosures

Dash Pods
903.652.4640     LazarSmith     8231 US Highway 271 South    Pattonville, TX     75468
TIP Kit
$ 85.00
Cowl Mount Kit
Mechanical
Fuel Pressure Gauge
Pre-CAC
Great for testing a new turbo or tuning twins!
No need to drill & tap exhaust manifold - screws into existing
EGT pyrometer probe threads.   (Specify 1/8" or 1/4" NPT)

Ships with 304SS condensate coil, soot filter, boost tube
adapter, brass compression fittings, 304SS Tee and close
nipple with high-temp anti-seize for exhaust manifold threads.

Clockable in 3 axes to fit any engine.
Essential for tuning wastegates, turbos & overfueled engines.
EGT Probe
TIP Gauge

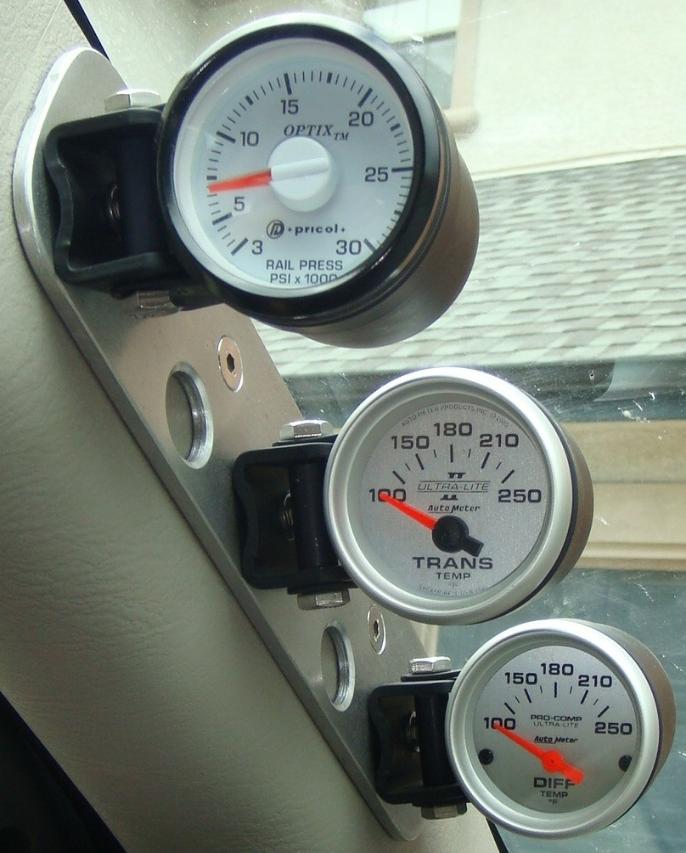

Triple A-Pillar
with gauge cups
$ 150.00
Gauge Plates
A-Pillar or Dash

Ships with stainless steel gauge cup
mounting & plate installation hardware.

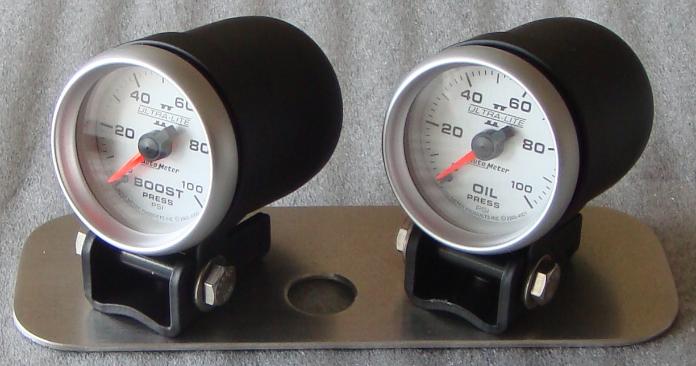

Twin Dash
Twin A-Pillar

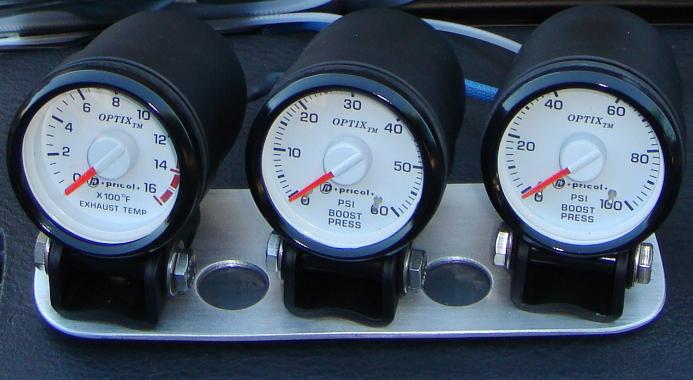

Triple Dash Right
Triple Dash Left
Triple A-Pillar
A-Pillar Quarter Plate
5 Gauge Dash Plate
$ 65.00
$ 60.00
$ 70.00
$ 70.00
$ 75.00
$ 95.00
$ 115.00
Coolant Pressure
$ 55.00

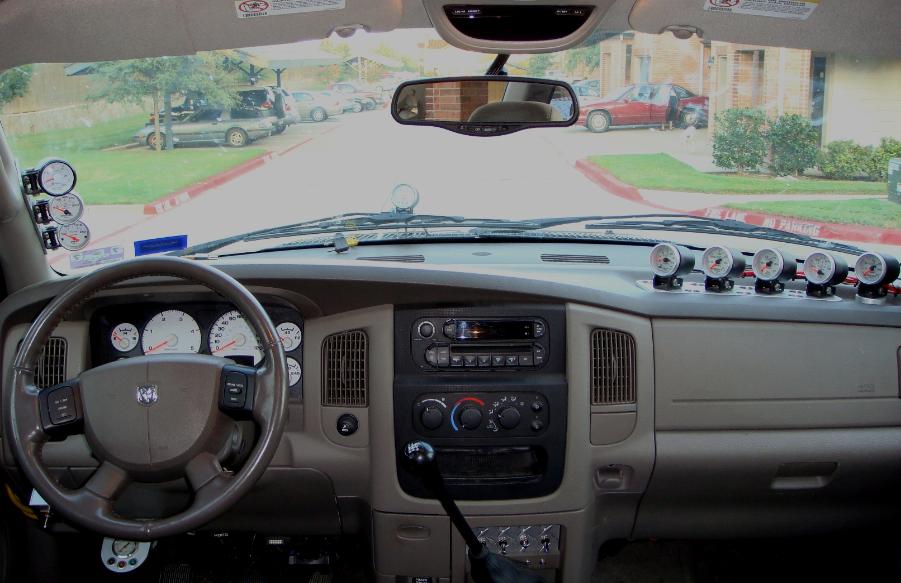

Win the race before it starts!

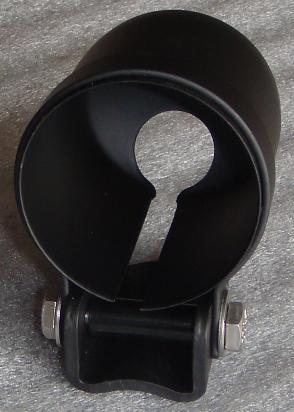

Gauge Cup
Various gauge brands and models available.

Includes full-sweep mechanical gauge, billet aluminum
bracket, gauge mounting cup, 304SS braided line &
hardware, fittings and electrical wiring with connectors.

Kit with Aluminum Track Mount
0-15 PSI                      0-100 PSI

Kit with Billet Aluminum Mount
0-15 PSI                      0-100 PSI

Kit with Powder-coated Mount
0-15 PSI                      0-100 PSI
$ 25.00
Installations
Custom Gauges

Nitrous & Water
Methanol Fittings

Specialty Plumbing
Under Dash Gauge Bracket
$ 25.00
RIGHT
LEFT
$ 35.00
Uni-Mount
Universal
Gauge Pod Mount
fits any 2.5" x 4" flat
area and clocks
gauge face through
90 degrees of
angular orientation.
FREE  SHIPPING
Aluminum
3rd Gen Cowl Mount
$ 25.00
$ 235.00
Brake Pressure Gauge
$ 95.00
$ 90.00
TIP - Turbine Inlet Pressure Kit
Quarter Plate
with gauge cups
$ 195.00
2-1/16" Gauge cups available in:
Black (standard)   $ 25
Chrome Plated     $ 35
Carbon Fiber        $ 50
Color Powdercoat $ 40
Includes stainless
mounting hardware
Billet
Cowl Mount
$ 85.00
Cowl removal not needed
with stainless hardware!
Installations
Twin Dash
$ 110.00
Triple Dash with gauge cups
$ 145.00
5 Gauge Dash Plate
with gauge cups
$ 240.00
2nd or 3rd Gen
Quarter Dash Plate with gauge cups
$ 195.00
with gauge cups
2nd or 3rd Gen
Billet Aluminum
Pressure Gauge Manifold

Make forced-induction engine tuning easier
by monitoring boost and exhaust pressure.
Use 2 boost gauges to monitor our multiport
1/8" NPT-tapped billet aluminum manifold
from up to 6 intake and exhaust locations.

Silicone hose available in blue, black or red.
304SS plugs & clamps, 1/8" NPT barbs & AN

8-port
$ 75.00    w/ fittings & hose $ 165.00


12-port $ 85.00   w/ fittings & hose $ 225.00
