Switch Panels

Stainless Steel
Cushion Clamps
1/4" ID                 $.50
3/8" ID                 $.50
1/2" ID                 $.75
5/8" ID                 $.75
3/4" ID                 $.75
7/8" ID               $1.00
1" ID                  $1.00
11/8 "ID              $1.25
11/4 "ID              $1.25
11/2 "ID              $1.50
13/4 "ID              $1.75
2" ID                   $2.00
21/2" ID              $2.50
3" ID                   $2.50

304 SS Ties 5/16" Wide
8"L             $ 1.00

14"L            $ 1.50

21"L            $ 2.00

27"L            $ 2.50

33"L            $ 3.00

LazarSmith

DIESEL TRUCK BOMBS

Eye Candy that works as well as it looks!

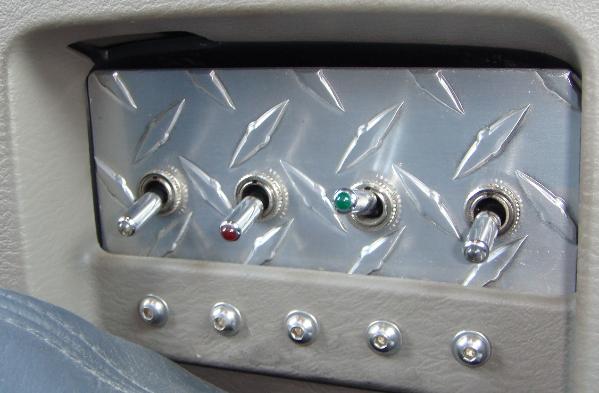

Custom aluminum & stainless steel switch
panels, mounting brackets & enclosures for
any application... whether in-cab or under
the hood, both interior or exterior mounted.

1/2" hole mount metal bat-handle toggle switches, available in these configurations:
SPST SPDT DPST DPDT 3 & 4 Pole Momentary NO/NC ( ) = momentary function
S=Single D=Double P=Pole T=Throw NO=Normal Open NC=Normal Open 1 pole per circuit

12VDC panel-mount indicator lamps (various colors & sizes), circuit breakers & fuse holders.
Wiring harnesses available for any application. Custom inquiries welcome.
Fabricated parts come with or without electrical accessories - you choose!

Wiring Harnesses

2nd Gen
High Idle Box
2WD - LO Kit

Switch Enclosures
T2 Switch $ 30.00
T3 Switch $ 35.00
T4 Switch $ 40.00
T5 Switch $ 45.00
T6 Switch $ 55.00
T7 Switch $ 65.00
T8 Switch $ 75.00
T9 Switch $ 85.00
TX Switch $ 95.00

ON-OFF
ON-OFF
SPDT 20A                  $ 12.00
ON-OFF-ON
DPST 20A                $ 13.00
ON-OFF
DPDT 20A                  $ 15.00
ON-OFF-ON
Momentary 20A          $ 12.00
SPST   OFF-(ON)
Momentary 20A          $ 14.00
SPDT   ON-OFF-(ON)
Momentary 20A          $ 20.00
DPST   ON-(OFF)
Momentary 20A          $ 20.00
DPDT   ON-OFF-(ON)
3PST 15A                  $ 25.00
ON-NONE-OFF
3PDT 15A                  $ 30.00
ON-OFF-ON
4PST 15A                  $ 30.00
ON-NONE-OFF
4PDT 15A                  $ 35.00
ON-OFF-ON
SPST 20A         $ 20.00

Sealed NEMA-4 w/O-ring

Toggle Boot        $ 5.00

SPST 50A                  $ 20.00
Heavy Duty 1" Handle
SPDT 50A                 $ 25.00
Heavy Duty 1" Handle

1" Heavy Duty             $ 5.00
Toggle Boot

SPST 50A                $ 25.00
Heavy Duty 1.5" Handle
1.5" Heavy Duty        $ 5.00
Half Toggle Boot

Toggle Boot               $ 5.00
for Lighted Switches

Panel Bushing Seal   $ 5.00

                                               $ 10.00

Momentary Pushbutton 15A              $ 15.00
SPST OFF-(ON) Normally Open

Momentary Pushbutton 15A              $ 15.00
SPST ON-(OFF) Normally Closed

Maintained SPDT                 $ 20.00

Compact Momentary
SPST 10A               $ 15.00

Master Disconnect Switches
180A continuous 1000A 10 sec

SPST Key Operated $ 45.00

SPST Lever              $ 40.00

DPST Lever              $ 50.00

Aluminum Face Plate
w/ Black Lettering - Key        $ 5.00

Aluminum Face Plate
w/ Black Lettering - Lever      $ 5.00

Heavy Duty Push/Pull
SPST 75A                 $ 25.00
Push/Pull Switch Boot $ 5.00

Wiring Harnesses
Pre-assembled into switch panels & enclosures with
bare or WeatherPak ends & VibraLok connections.

Fabrication Pricing
$ 5.00   for each electrical component
$ 1.00 per circuit - foot (min length 1')
$ 2.00   per circuit per foot 5' & longer
WeatherPak connections $ 2.00/circuit

WeatherPak Connectors Male + Female

Single   Double   Triple    Flat-4    4-Square   Flat-6
$ 4.00   $ 6.00   $ 8.00   $ 10.00   $ 12.00   $ 15.00

Ordering Instructions:
Step # 1     Choose switch panel(s) or enclosure(s)
Step # 2     Choose desired electrical component(s)
Step # 3     Select number of electrical components
Step # 4     Decide wiring harness circuit-foot length
(1 circuit foot = distance between each electrical
component connection and end of wiring harness)
Step # 5     Calculate total price for all parts needed
and add harness fabrication cost as priced above.
Step # 6     Enter total quantity in $$$ on checkout
page of Requests & Options button > > > > > >
Please include positioning instructions to seller
!

Indicator Panel Lamps
   Clear Yellow Green Red    Blue $ 10.00

   Chrome LED Light Indicators $ 15.00
Yellow                 Green                   Red

Panel Mount Circuit Breakers   $ 10.00
10A        15A        20A       30A        40A

Circuit Breaker Dust Boost $ 5.00

Panel-mount Fuse Holder   $ 5.00

Male Socket w/ Dust Cover          $ 25.00
Block Heater Cord Flush Mount
